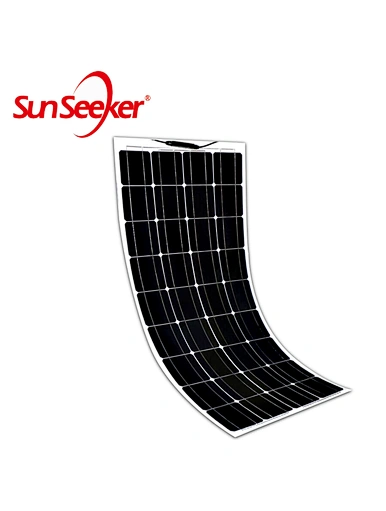

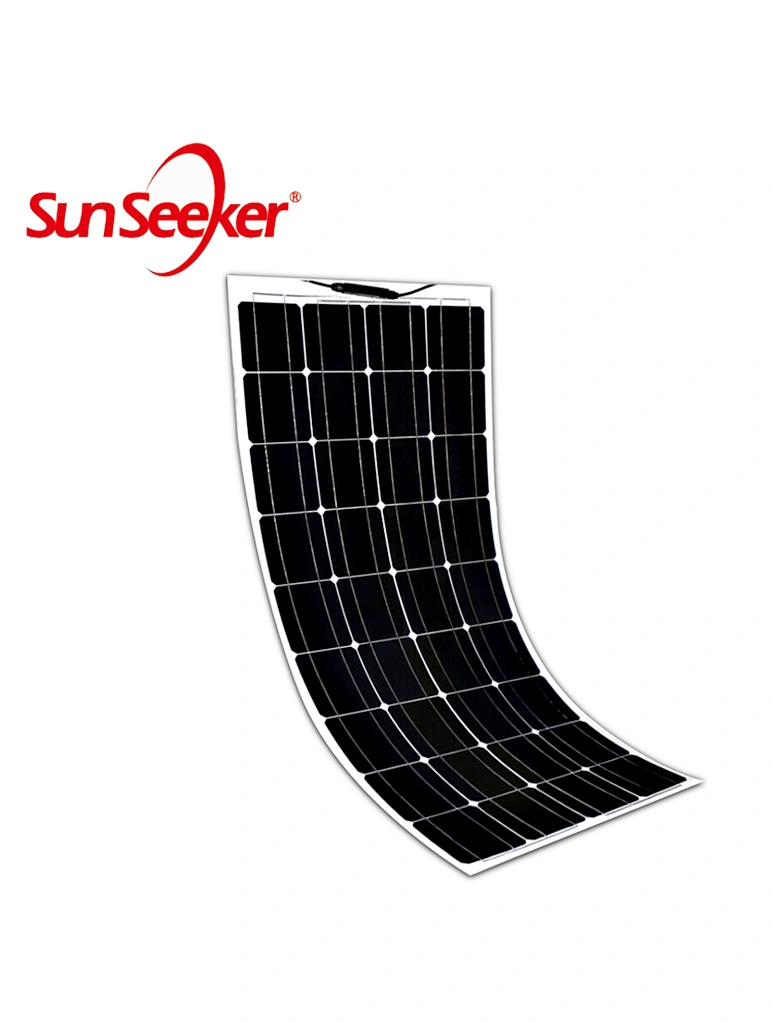

100W mono flexibility Solar panel

Flexible solar panel
100W mono flexibility Solar panel
price

US $46.00 - US $50.00 / piece

ZY-F100W
EXW,FOB,CFR,CIF
1 piece
1000piece / Week
Yiwu, China
5Day
Quantity
solar panel refers to a panel designed to absorb the sun's rays as a source of energy for generating electricity or heating. Solar Photovoltaic panels constitute the solar array of a photovoltaic system that generates and supplies solar electricity in commercial and residential applications. A single solar module can produce only a limited amount of power; most installations contain multiple modules
50W mono flexibility solar panel
Module Type
ZY-F50W
Peak power(Pmax)
50W
MPP voltage(Vmp)
18V
MPP current(Imp)
2.7A
Open circuit voltage(Voc)
21.6V
Short circuit current(Isc)
2.9A
Module efficiency
14.5%
Power Tolerance
±3%
Operating Temperature
-40℃~+85℃
Product certification
CE/ROHS
Dimensions
700*510*2.5mm
No. of Cells
36PCS(4*9)
Weight
1.5kg
Junction Box
IP65
Output Cables
2.5㎟*900mm
Connectors
MC4 compatible
Box Size
75*8*58cm
Packing Type
1PCS/CTN
weight
1.5kg/CTN
100W mono flexibility solar panel
Module Type
ZY-F100W
Peak power(Pmax)
100W
MPP voltage(Vmp)
18V
MPP current(Imp)
5.55A
Open circuit voltage(Voc)
21.6V
Short circuit current(Isc)
5.99A
Module efficiency
14.5%
Power Tolerance
±3%
Operating Temperature
-40℃~+85℃
Product certification
CE/ROHS
Dimensions
1200*540*2.5mm
No. of Cells
36PCS(4*9)
Weight
1.5kg
Junction Box
IP65
Output Cables
2.5㎟*900mm
Connectors
MC4 compatible
Box Size
128*3*58cm
Packing Type
1PCS/CTN
weight
2.5kg/CTN
160W mono flexibility solar panel
Module Type
ZY-F160W
Peak power(Pmax)
160W
MPP voltage(Vmp)
18V
MPP current(Imp)
8.9A
Open circuit voltage(Voc)
21.6V
Short circuit current(Isc)
9.6A
Module efficiency
15.9%
Power Tolerance
±3%
Operating Temperature
-40℃~+85℃
Product certification
CE/ROHS
Dimensions
1480*680*2.5mm
No. of Cells
36PCS(4*9)
Weight
2.7kg
Junction Box
IP65
Output Cables
2.5㎟*900mm
Connectors
MC4 compatible
Box Size
149*69*3cm
Packing Type
1PCS/CTN
weight
3.5kg/CTN
Mono solar panel To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates.This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
Q1: How to choose the solar panel?
A1: Tell us your demand, then our sales will recommend a suitable solar panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
