Hot sale swimming pool water pump garden plant watering kit solar water pumps for sale
price
US $276.00 - US $359.00 / piece
ZP21-19-D72/900
EXW,FOB,CFR,CIF
1 piece
500piece / Week
China
5Day
Quantity

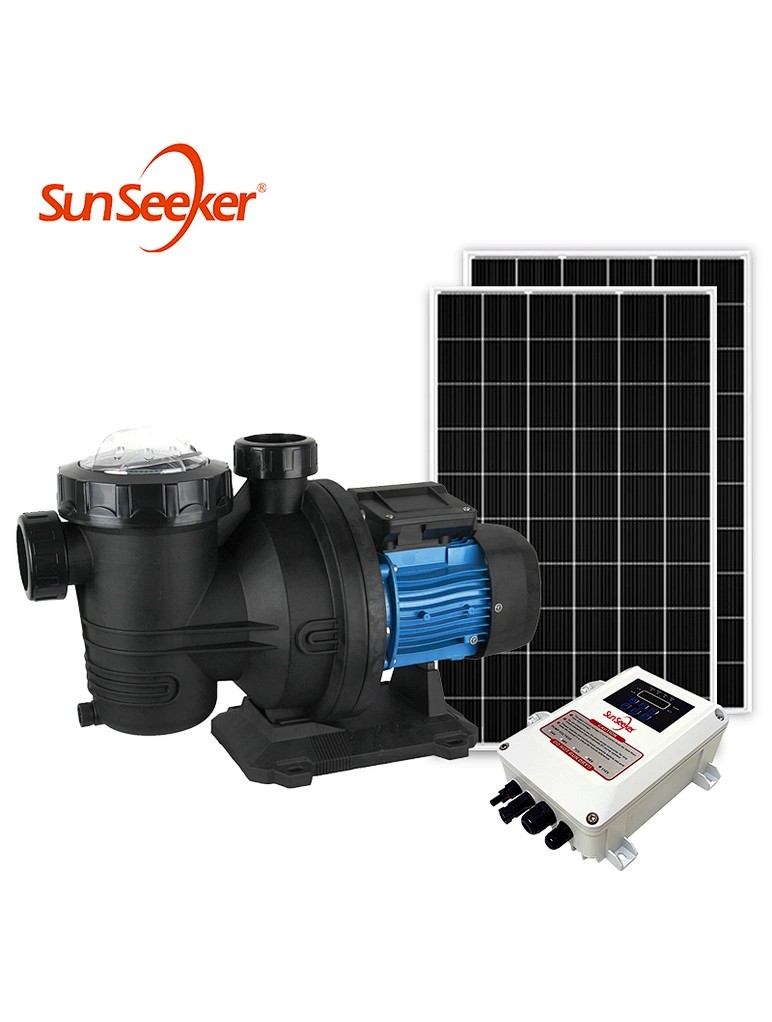

Introduction to solar water pump Systemmainly consists of PV modules, solar water pump controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.
Analysis of solar water pump parameters
Solar swimming pool pump
17: Max Flow is 17 m3/h
15:solar water pump Max Head is 15m
D48:solar water pump voltage is DC 48V
550:solar water pump Power is 550W(0.75HP)
Solar swimming pool pump
17: Max Flow is 17 m3/h
15:solar water pump Max Head is 15m
D48:solar water pump voltage is DC 48V
550:solar water pump Power is 550W(0.75HP)
Solar water pump parameters
what's the size of your pool?
1,our pump ZP17-15-D48-550 is suitable for pool less than 75 m3 (75,000 liters or 19,000gallons)
2,our pump ZP21-19-D72-900 is suitable for pool less than 90 m3 (90,000 liters or 23,000gallons)
3,our pump ZP31-19-D72-1200 is suitable for pool less than 140 m3 (140,000 liters or 36,000gallons)
2,our pump ZP21-19-D72-900 is suitable for pool less than 90 m3 (90,000 liters or 23,000gallons)
3,our pump ZP31-19-D72-1200 is suitable for pool less than 140 m3 (140,000 liters or 36,000gallons)
solar water pump Application area:
This solar water pump is mainly used in residential and commercial swimming pool and spas. Advanced technology:
1.Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,
direct current, brushless, non-sensor motor.
2.Adopt double plastic package for rotor and stator, motor insulation≥300MΩ, the motor security was much improved.
3.Oil filling, convenient installation and environmental protection.
4.High technique products adopting MPPT and DSP chip technique.
5.100% copper wire,cold-rolled silicon steel sheet.
6.Advanced three phase brushless DC motor.
This solar water pump is mainly used in residential and commercial swimming pool and spas. Advanced technology:
1.Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,
direct current, brushless, non-sensor motor.
2.Adopt double plastic package for rotor and stator, motor insulation≥300MΩ, the motor security was much improved.
3.Oil filling, convenient installation and environmental protection.
4.High technique products adopting MPPT and DSP chip technique.
5.100% copper wire,cold-rolled silicon steel sheet.
6.Advanced three phase brushless DC motor.
►MPPT Controller function/MPPT● Low-voltage protection
●Over-voltage protection
●Over-current protection
●Dry-protection protection
● Reverse connection protection
● Soft starting protection
●Lack of water protection
Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering) →available DC electricity→(charge the batteries)→pumping water Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5)
Brushless DC solar water Pump:
1 PCS solar water pump with 2m cable, longer cable is available if required
MPPT solar waterpump Controller:
1 PCS High-efficiency and full-automatic MPPT solar water pump Controller
Installation Accessiories:
1 PCS Water level sensor or float switch
1 PAIR MC4 PV Connector
1 ROPE PTFE Tape
1 ROPE Electric tape
1 PCS screwdriver
1 PCS Pipe Conector
1 PCS Installation Manual
1 PCS solar water pump with 2m cable, longer cable is available if required
MPPT solar waterpump Controller:
1 PCS High-efficiency and full-automatic MPPT solar water pump Controller
Installation Accessiories:
1 PCS Water level sensor or float switch
1 PAIR MC4 PV Connector
1 ROPE PTFE Tape
1 ROPE Electric tape
1 PCS screwdriver
1 PCS Pipe Conector
1 PCS Installation Manual
FAQ
Q: Are you a manufacture or trading company?
A: We are a manufacture special for Brushless DC solar water pump;
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q.How can I get the solar water pumps?
A: We can send the solar water pump to customers by express like DHL, Fedex, or send by air and sea.
Q: What’s your delivery time?
A:1) We have stock for most of regular model and the sample can be sent to you within 2-3 days.
2) The quantity order can be shipped to you within 10-15 days after order confirmation.
Q: What about your product warranty& after sales service?
A: Three years warranty for all solar pump.
Q: Can you supply completely solar water pump system?
A: Yes, we can supply whole solar water pump system with solar panel, PV box, Panel structure and cable.
Q: Are you a manufacture or trading company?
A: We are a manufacture special for Brushless DC solar water pump;
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q.How can I get the solar water pumps?
A: We can send the solar water pump to customers by express like DHL, Fedex, or send by air and sea.
Q: What’s your delivery time?
A:1) We have stock for most of regular model and the sample can be sent to you within 2-3 days.
2) The quantity order can be shipped to you within 10-15 days after order confirmation.
Q: What about your product warranty& after sales service?
A: Three years warranty for all solar pump.
Q: Can you supply completely solar water pump system?
A: Yes, we can supply whole solar water pump system with solar panel, PV box, Panel structure and cable.
