Sunseeker 48v dc solar water pump system solar well pump solar pump kit
price
US $158.00 - US $185.00 / piece
4ZS2.1-50-D24-270
EXW,FOB,CFR,CIF
1 piece
500piece / Week
China
5Day
Quantity

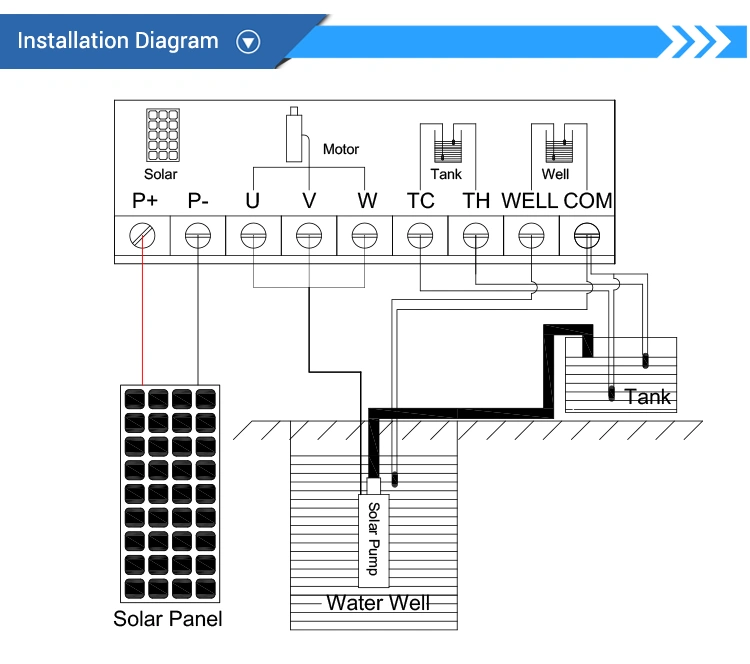

Introduction to solar water pump System
mainly consists of PV modules, solar water pump controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.

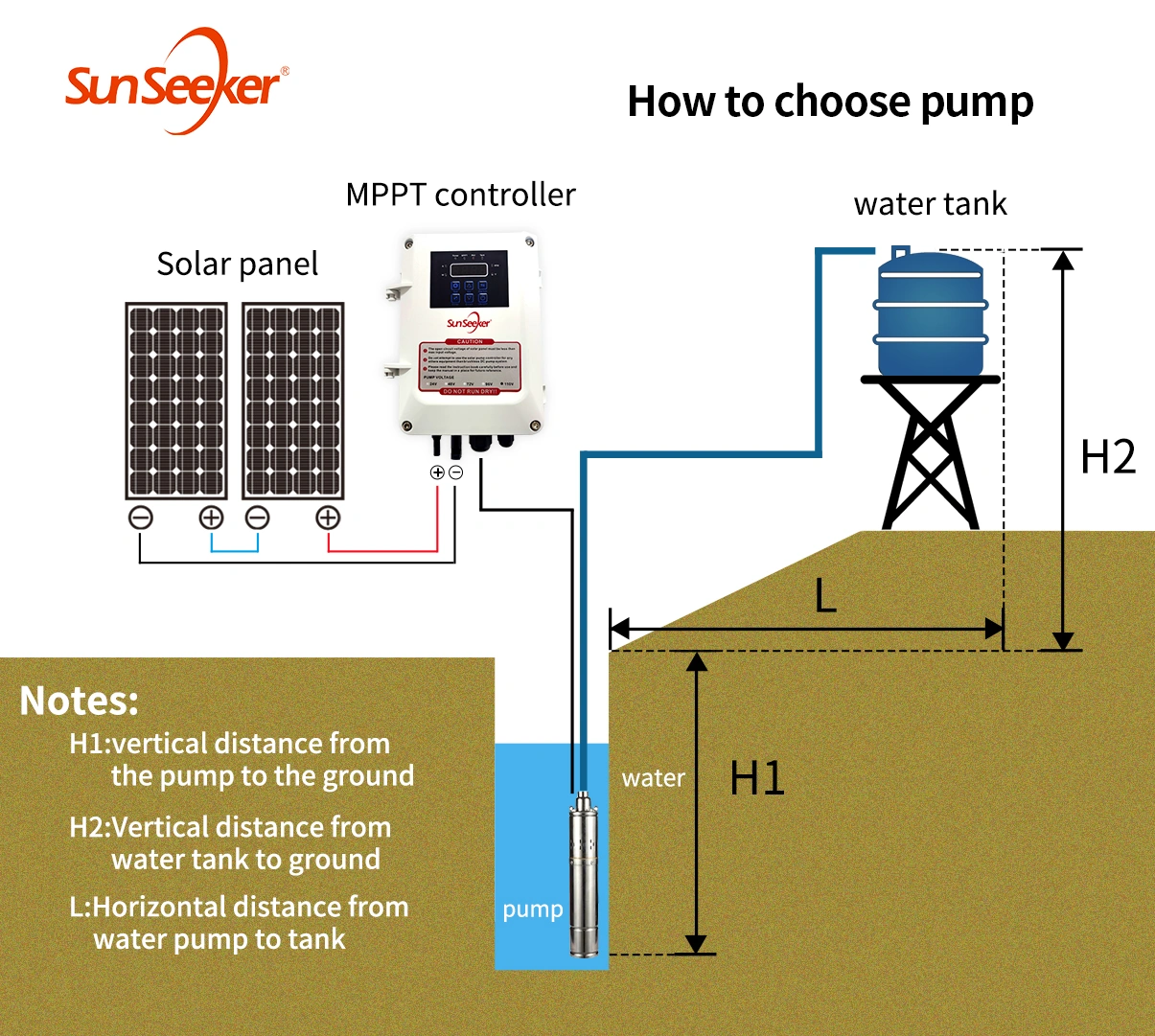

Calculation of solar water pump head
1）L:Horizontal distance from solar water pump to water tank
2）H:Vertical distance from solar water pump to water tank
3）Total head = H+L*10%
Calculation of solar water pump Flow
1）Time: 5 hours (estimated working hours of solar water pump)
2）Daily water consumption: daily water consumption of water pump (m³)
3）Actual flow: daily water consumption/time(m³/h)
Pls select the right solar water pump below yourself, or pls inform us below information then we can select the right pump for you.
1. Where will the pump be used?
2. How much water discharge ( liters or gallon or m3) required per day or per hour?
3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?

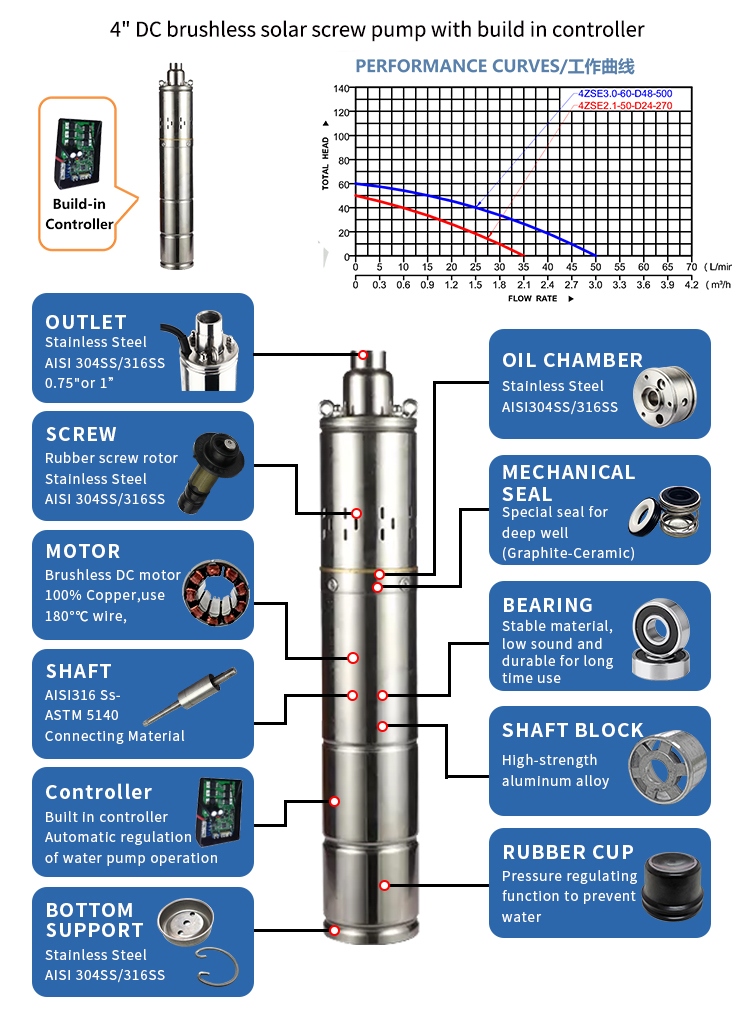

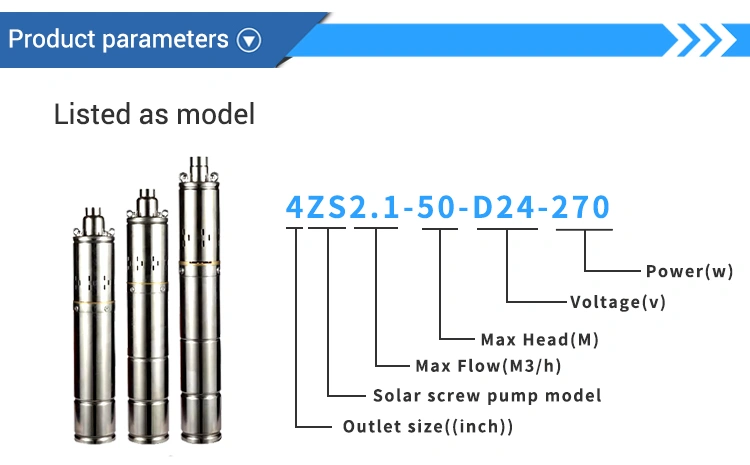

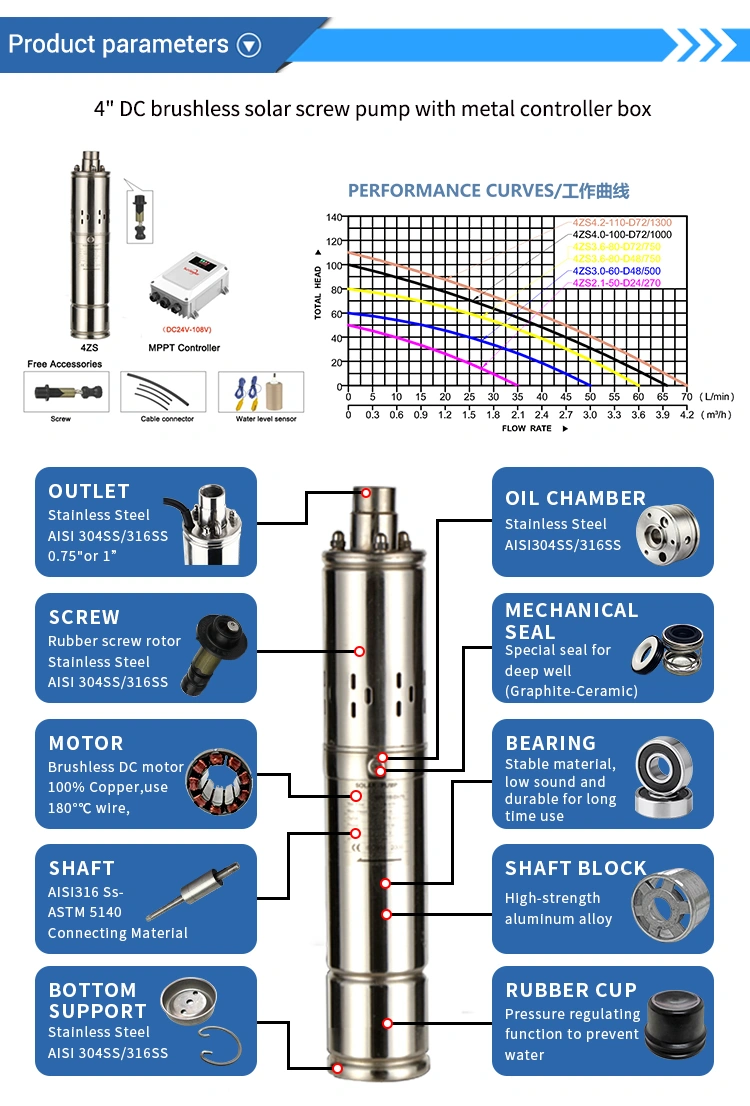

Analysis of solar water pump parameters
Solar screw pump Outletsize:3 inch/4 inch
Solar screw pump Outletsize:3 inch/4 inch
3 inch Solar screw pump diameter is 76mm/4 inch Solar screw pump diameter is 100mm
2.1:solar water pump Max Flow is 2.1 m3/h
50:solar water pumpMaxHead is 50m
D24:solar water pump voltage is DC 24V
270:solar water pumpPower is 270W(0.35HP)
solar water pump parameters
solar water pump parameters
►MPPT Controller function/MPPT
● Low-voltage protection
● Over-voltage protection
● Over-current protection
● Dry-protection protection
● Reverse connection protection
● Soft starting protection
● Over-voltage protection
● Over-current protection
● Dry-protection protection
● Reverse connection protection
● Soft starting protection
● Lack of water protection
● Ambient temperature:-15℃-70℃
Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5）

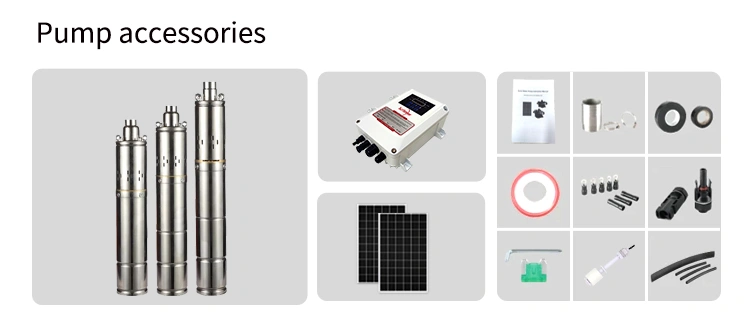

1. solar water pump with 5m cable, longer cable is available if required

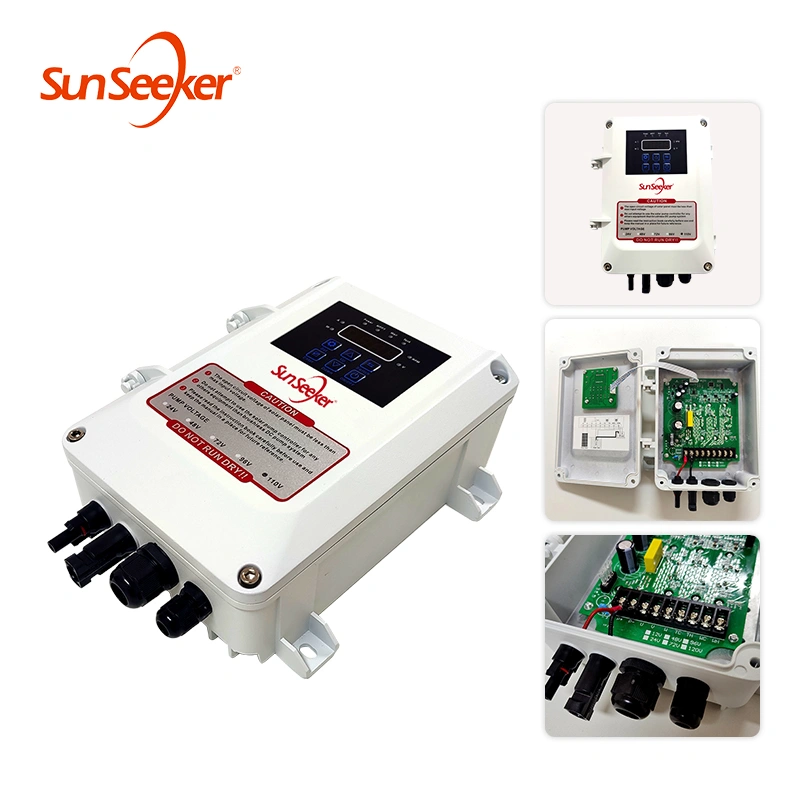

2. MPPT &DSP Controller
3. Water level sensor or float switch
4. Other Accessories: Outlet / MC4 PV Cable Connector / PTFE Tape / Electric tape / screwdriver / Pipe hoop / Water pipe connector
5. Nylon Rope to hang the pump
6. Screw or Impeller for replace
7. Installation Manual
8. Solar panels are option
FAQ
Q: Are you a manufacture or trading company?
A: We are a manufacture special for Brushless DC solar water pump;
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q.How can I get the solar water pumps?
A: We can send the solar water pump to customers by express like DHL, Fedex, or send by air and sea.
Q: What’s your delivery time?
A:1) We have stock for most of regular model and the sample can be sent to you within 2-3 days.
2) The quantity order can be shipped to you within 10-15 days after order confirmation.
Q: What about your product warranty& after sales service?
A: Three years warranty for all solar pump.
Q: Can you supply completely solar water pump system?
A: Yes, we can supply whole solar water pump system with solar panel, PV box, Panel structure and cable.
