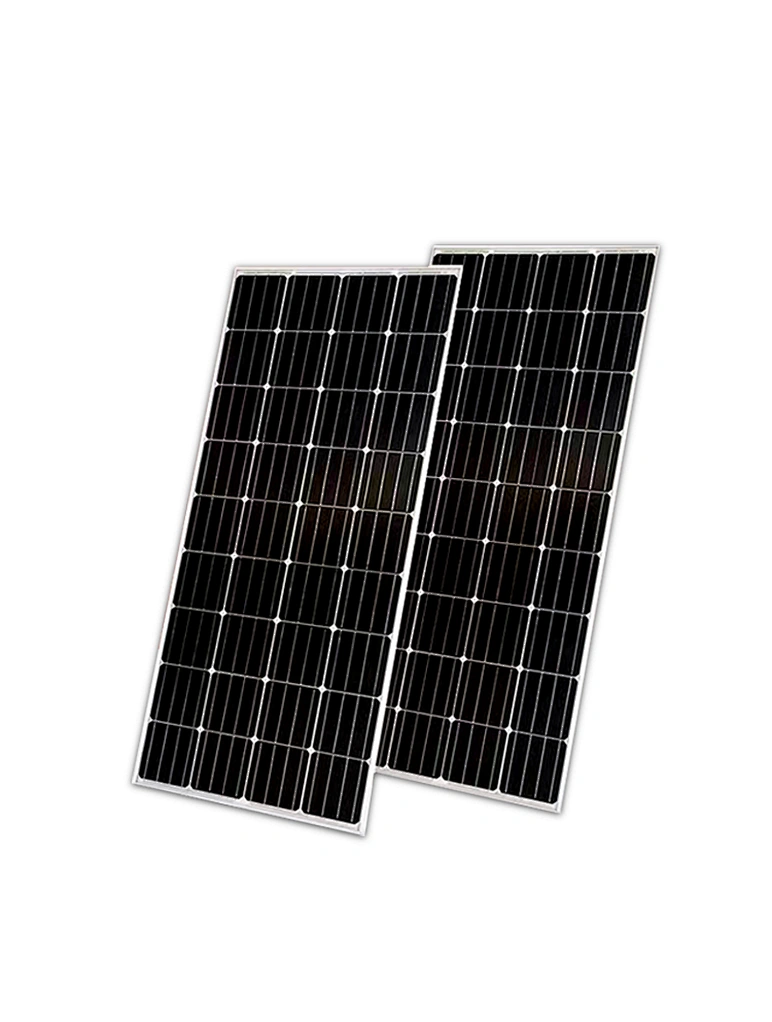

Fuente de alimentación solar del módulo solar fotovoltaico del panel solar de silicio de un solo cristal

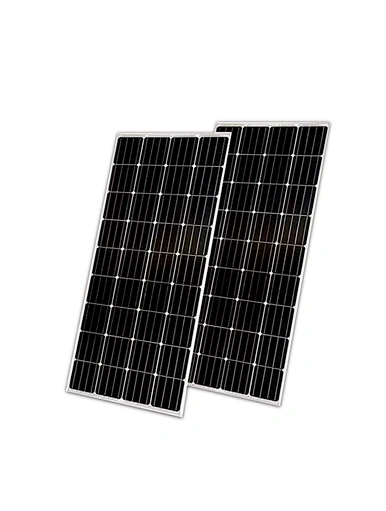

Célula fotovoltaica de panel solar
Fuente de alimentación solar del módulo solar fotovoltaico del panel solar de silicio de un solo cristal
precio

US $6.00 - US $120.00 / pieza

ZY-M10W
EXW,FOB,CFR,CIF
1 pieza
1000pieza / Semana
Yiwu, China
5De
Cantidad
solar panel refers to a panel designed to absorb the sun's rays as a source of energy for generating electricity or heating. Solar Photovoltaic panels constitute the solar array of a photovoltaic system that generates and supplies solar electricity in commercial and residential applications. A single solar module can produce only a limited amount of power; most installations contain multiple modulessolar panel parameters
Monocrystalline silicon solar panel
Power
size of panel
VM
IPM
VOC
ISC
(W)
(MM)
(V)
(A)
(V)
(A)
ZY-MP10W
350*240*17MM
17.8V
0.56A
22.3V
0.61A
ZY-MP20W
420*350*17MM
17.8V
1.12A
22.3V
1.22A
ZY-MP30W
640*350*25MM
17.8V
1.68A
22.3V
1.82A
ZY-MP40W
670*420*25MM
17.8V
2.25A
22.3V
2.42A
ZY-MP50W
700*540*30MM
17.8V
2.81A
22.3V
3.03A
ZY-MP60W
830*540*30MM
17.8V
3.37A
22.3V
3.64A
ZY-MP80W
780*670*30MM
17.8V
4.50A
22.3V
4.90A
ZY-MP100W
1200*540*30MM
17.8V
5.62A
22.3V
6.12A
ZY-MP150W
1480*680*35MM
17.8V
9.27A
22.3V
9.18A
ZY-MP200W
1330*992*35MM
36.1V
5.54A
44.6V
5.98A
ZY-MP200W
1580*808*35MM
36.1V
5.54A
44.6V
5.98A
ZY-MP280W
1640*992*40MM
30.2V
9.27A
36.9V
8.94A
ZY-MP330W
1950*992*40MM
36.1V
8.31A
44..6V
8.98A
ZY-MP360W
1950*992*40MM
36.1V
9.97A
44..6V
8.98A
ZY-MP400W
1979*996*40MM
38.28V
9.83A
49.58V
10.35A
ZY-MP450W
2108x1048x40MM
41.01V
10.93A
49.59V
11.32A

Mono solar panel To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates.This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.

Q1: How to choose solar panels?
A1: Tell us your demand, then our sales will recommend a solar panels for you. Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon.The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?

A3: Delivery time 7 days for sample; 15 days for bulk order. Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty. Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using,we offer 24 hours online service and will solve your problem within 1 hour.
